Printing Checkbox

This guide shows how to print checkbox values into your PDF using n8n.

Step 1 — Prepare your template​

In the Eledo editor:

  1. Add a Dynamic Checkbox component
  2. In Data (expression), enter a field name (for example Fragile)
  3. Confirm and save the template

Checkbox configuration

tip

Learn more about Dynamic Checkbox:
→ /docs/product/template-editor/components/dynamic-checkbox.mdx

Step 2 — Use the template in n8n​

In your n8n workflow:

  1. Add the Eledo PDF node
  2. Select your credentials
  3. Choose your template
  4. Make sure Input is set to Guided Fields

Step 3 — Add and set the value​

In the Eledo node:

  1. Click Add Boolean Field
  2. Select the field (for example Fragile)
  3. Set the value using the toggle
  • true → checked
  • false → unchecked

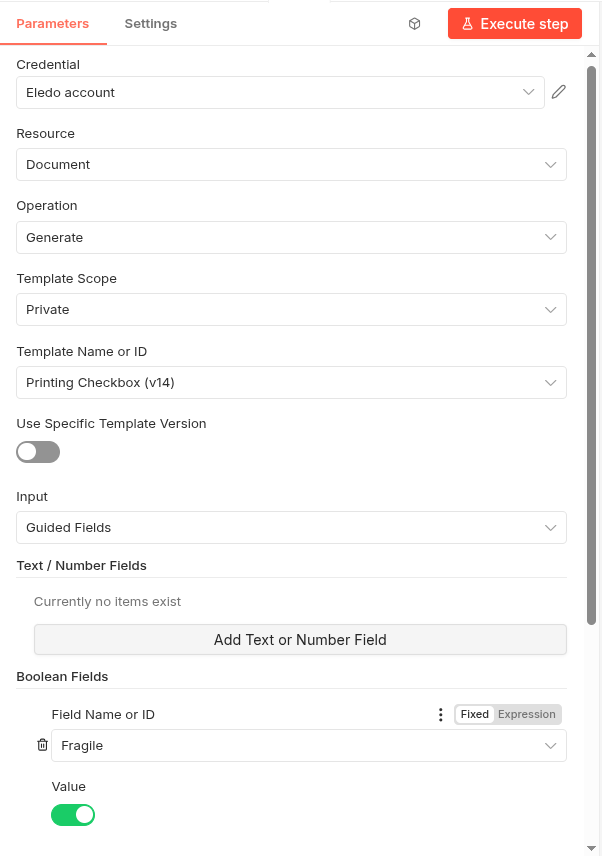

Mapping checkbox value

Result​

When the workflow runs:

  • the boolean value is passed to Eledo
  • Eledo evaluates the value
  • the checkbox is rendered as checked or unchecked

Next steps​
