Printing Number

This guide shows how to print numeric values into your PDF using n8n.

Step 1 — Prepare your template​

In the Eledo editor:

  1. Add a Text Box (TXT) component
  2. In Data (expression), enter a field name (for example Quantity)
  3. Confirm and save the template

Number configuration

tip

Learn more about Text Box: /docs/product/template-editor/components/text-box.mdx

Step 2 — Use the template in n8n​

In your n8n workflow:

  1. Add the Eledo PDF node
  2. Select your credentials
  3. Choose your template
  4. Make sure Input is set to Guided Fields

Step 3 — Add and fill the field​

In the Eledo node:

  1. Click Add Text or Number Field
  2. Select the field (for example Quantity)
  3. Enter a numeric value into the Value field

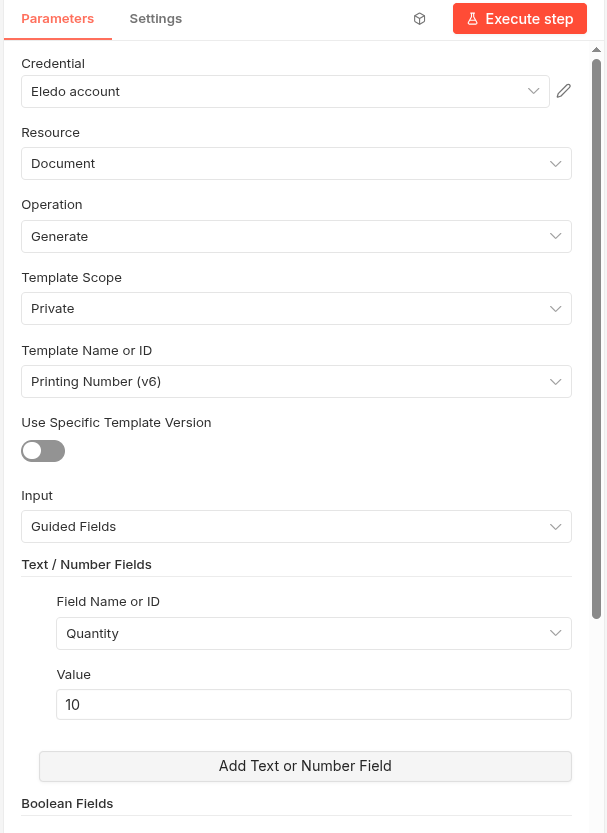

Mapping number value

Step 4 — Format the number (recommended)​

By default, numbers are converted to text automatically.
This may result in inconsistent formatting.

Use formatting functions in the template to control output.

Examples:

NUM(Quantity, 0, 2)
CURR(Quantity, 0, 2)
CONCAT("$", CURR(Quantity, 0, 2))
tip

Learn more about number formatting:
→ Formatting Numbers
→ Number Functions

Result​

When the workflow runs:

  • the value is passed to Eledo
  • Eledo fills the Text Box
  • the formatted number is printed in the document
