Printing QR Code

This guide shows how to print QR codes into your PDF using n8n.

Step 1 — Prepare your template​

In the Eledo editor:

  1. Click Barcodes 2D → select QR Code
  2. In Data (expression), enter a field name (for example ProductQR)
  3. Confirm and save the template

QR code configuration

tip

Learn more about QR codes:
→ /docs/product/template-editor/guides/generating-qr-codes.mdx

Step 2 — Use the template in n8n​

In your n8n workflow:

  1. Add the Eledo PDF node
  2. Select your credentials
  3. Choose your template
  4. Make sure Input is set to Guided Fields

Step 3 — Add and set the value​

In the Eledo node:

  1. Click Add Text or Number Field
  2. Select the field (for example ProductQR)
  3. Enter the value to encode (for example a URL or text)

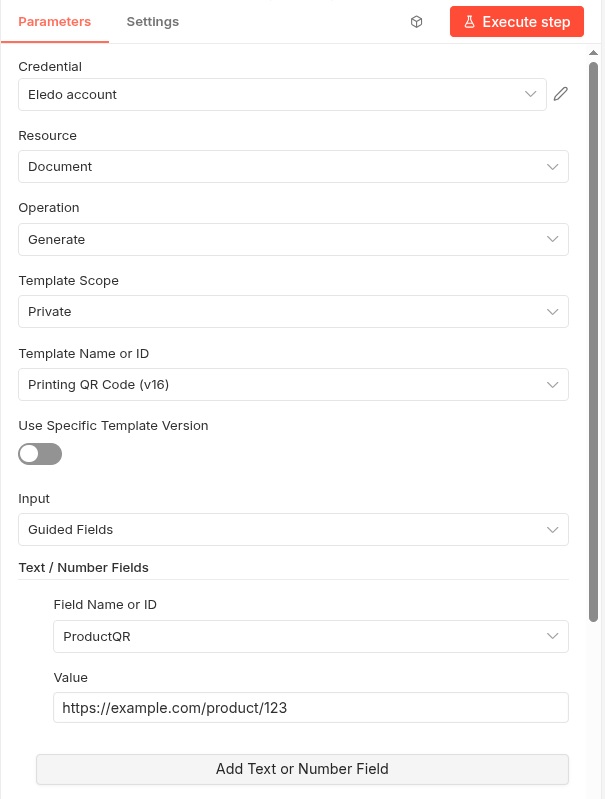

Mapping QR code value

Important notes​

  • QR codes encode text — the format of the value determines behavior
  • Common use case: encode a URL

Example:

https://example.com/product/123

Result​

When the workflow runs:

  • the value is passed to Eledo
  • Eledo encodes it into a QR code
  • the QR code is rendered in the document

Next steps​
