Printing Checkbox

This guide shows how to print checkbox values into your PDF using Zapier.

Step 1 — Prepare your template​

In the Eledo editor:

  1. Add a Dynamic Checkbox component
  2. In Data (expression), enter a field name (for example Fragile)
  3. Confirm and save the template

Checkbox configuration

tip

Learn more about Dynamic Checkbox:
→ /docs/product/template-editor/components/dynamic-checkbox.mdx

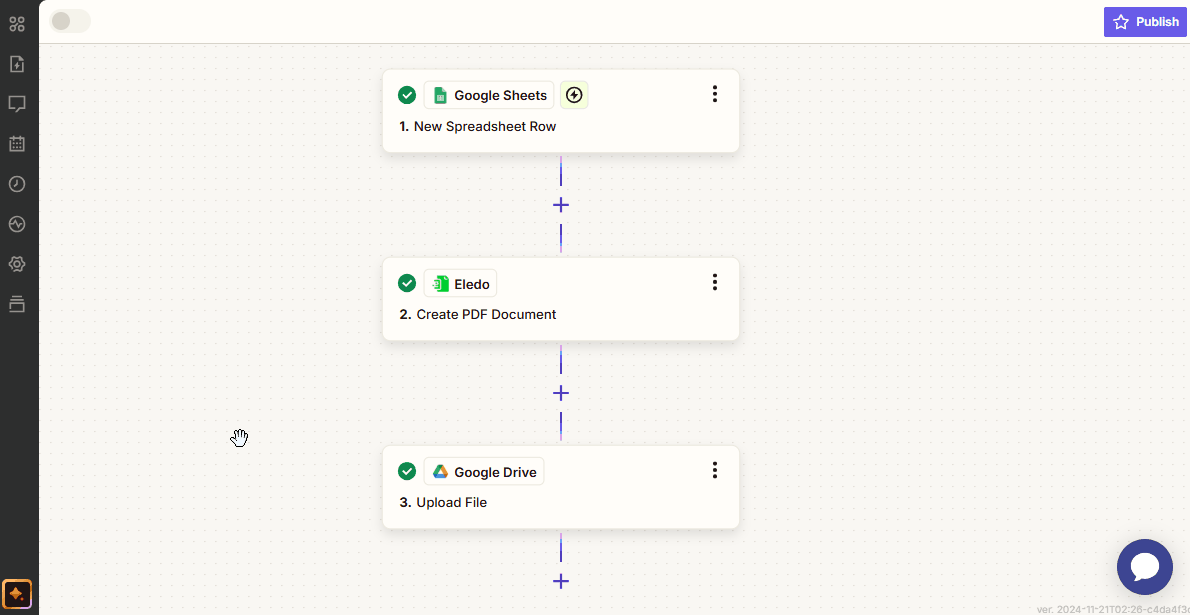

Step 2 — Use the template in Zapier​

In your Zap:

  1. Add the Eledo PDF action
  2. Select your template
  3. Load the available fields

Your field (for example Fragile) will appear.

Step 3 — Map your data​

  1. Click into the field (for example Fragile)
  2. Provide a boolean value from your trigger or previous step
    • true → checked
    • false → unchecked
  3. Confirm the mapping

Mapping checkbox value

Result​

When the Zap runs:

  • the boolean value is passed from your trigger
  • Eledo evaluates the value
  • the checkbox is rendered as checked or unchecked

Next steps​
