Printing Image

This guide shows how to print images into your PDF using Zapier.

Step 1 — Prepare your template​

In the Eledo editor:

  1. Add a Dynamic Image component
  2. In Data (expression), enter a field name (for example image_url)
  3. (Optional) Set width or height
  4. Confirm and save the template

If only one dimension is set, the other is calculated automatically to preserve the aspect ratio.

Dynamic image configuration

tip

Learn more about Dynamic Image:
→ /docs/product/template-editor/components/dynamic-image.mdx

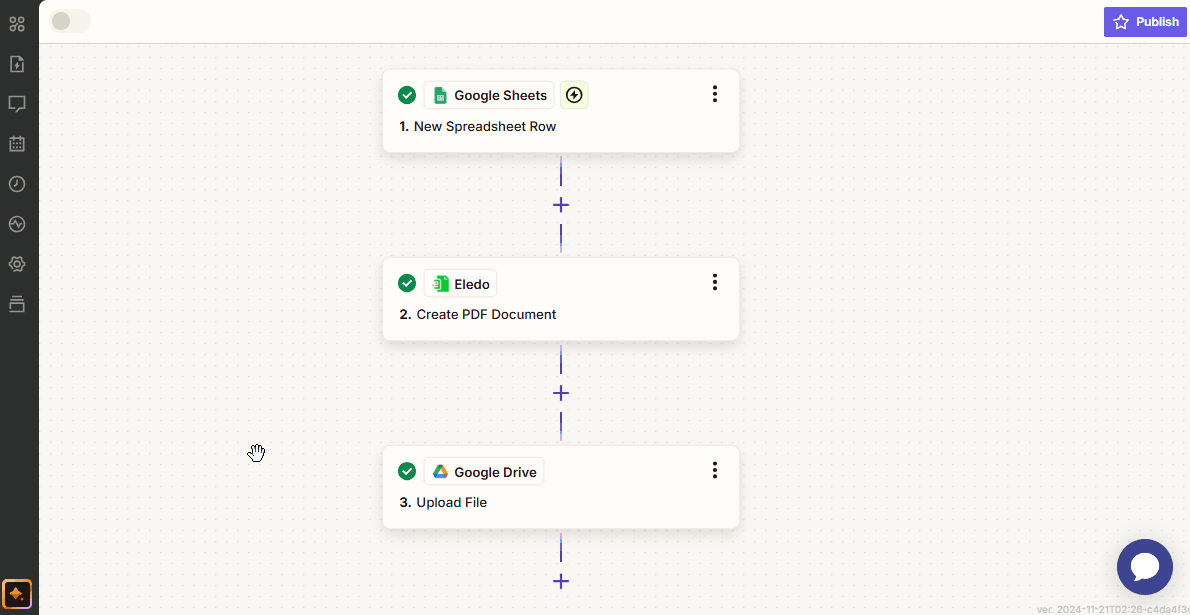

Step 2 — Use the template in Zapier​

In your Zap:

  1. Add the Eledo PDF action
  2. Select your template
  3. Load the available fields

Your field (for example image_url) will appear.

Step 3 — Map your data​

  1. Click into the field (for example image_url)
  2. Provide an image URL from your trigger or previous step
  3. Confirm the mapping

Mapping image URL

Important notes​

  • The image must be accessible via a public URL
  • Invalid or inaccessible URLs will result in a missing image

Result​

When the Zap runs:

  • the image URL is passed from your trigger
  • Eledo loads the image
  • the image is rendered in the document
