Dynamic Image

Dynamic Image allows you to insert images into your document based on data.

Unlike Image, which is static, Dynamic Image is evaluated during document generation and can change for each document.

tip

Use Image for static visuals configured in the template.

Use Dynamic Image when the image should come from data and change for each generated document.

The image source is provided at runtime, making it possible to generate documents with dynamic visuals such as:

  • profile pictures
  • product images
  • attachments
  • logos or branding assets
Dynamic Image Configuration

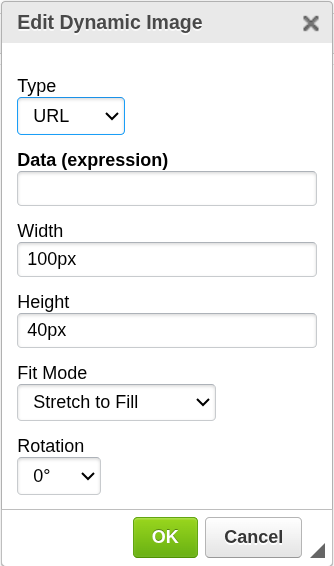

Dynamic Image configuration dialog.

How it works​

Dynamic Image evaluates a Data (expression) that returns either:

  • an image URL
  • or Base64-encoded image data

The image is then rendered in the document during generation.

Add Dynamic Image​

To insert a dynamic image:

  1. Place the cursor where you want the image to appear
  2. Click the Dynamic Image icon in the top toolbar
  3. The configuration window will open
  4. Configure the image settings
  5. Confirm to insert the image

The image placeholder will be inserted at the cursor position.

Dynamic Image icon in the top toolbar

Configuration​

Type​

Defines how the image is provided.

  • URL — the image is downloaded from a URL provided in the data
  • Base64 — the image is provided directly as Base64-encoded data

Data (expression)​

Defines the source of the image.

  • Must evaluate to a URL or Base64 image data
  • The expected format depends on the selected Type

Examples:

ImageURL

Field containing a URL (used with Type = URL)

ImageData

Field containing Base64 image data (used with Type = Base64)

Width (optional)​

Sets the width of the image in the final document.

  • The image is scaled to match the specified width
  • If height is not set, aspect ratio is preserved

Height (optional)​

Sets the height of the image in the final document.

  • The image is scaled to match the specified height
  • If width is not set, aspect ratio is preserved

Scaling behavior​

  • If only one dimension is set → the other is calculated automatically
  • If both width and height are set → the image is resized to fit both

Important notes​

  • The image is loaded during document generation
  • Invalid URLs or data may result in a missing image
  • Large images may impact generation performance

When to use Dynamic Image​

Use this component when you need to:

  • include images from external systems
  • personalize documents with user-specific visuals
  • dynamically generate branded or media-rich PDFs
